Thermal Insulation Adhesives are used to seal joints of synthetic rubber insulation foam or major plastic polymers. These adhesive must resist high temprature. so that it could not evoperate on heating.
Fevicol AC Duct King is a synthetic Rubber based adhesive specially developed to bond various insulation material with HVAC ducts, Chilled Water Pipe lines, and under deck in various industrial & residential projects, the product can be conveniently applied in low ventilated sites at remote place, as the smell is very mild.
Appearence | Light Green Opaque Paste | |
Viscosity at 30° ± | 40-80 poise | |
Temperature Resistance | -20° C to 60°C | |
VOC | <20 gms/ Liter | |
Coverage by Spreader | 8 m2 / Kg(Bonded area) | |
Packing | 25 & 30 Kg Plastic Drum | |
Uses: |
|
Fevicol AC Duct King ECO Fresh is water based environment friendly, synthetic resin adhesive specially developed for HVAC ducting, chilled water piping and under deck insulation applications in HVAC & R Industry. It is extremely ideal for green certified & safety Priority project because it has low Voc, Low flame Retardancy and does not emit smoke.
Appearence | Light Green Opaque Paste | |
Viscosity at 30° ± | 40-80 poise | |
Temperature Resistance | -20°C to 60°C | |
VOC | < 20 gms/ Liter | |
Coverage by Spreader | 9 m2 / Kg (Bonded area) | |
Self Life & Storage | 12 months from the date of manufacturing & when stored in a dry and cool place in the original unopened container(Recommended Storage temperature: 20-30°C) | |
Packing | 20 Kg Plastic Drum | |
Uses: |
|

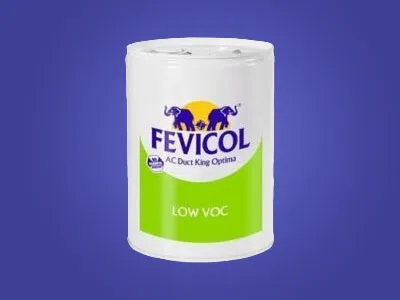

Low VOC synthetic rubber based adhesive to bond nitrile rubber in HVAC applications. Fevicol AC Duct King Optima is a synthetic rubber based, low VOC product specially developed for various application in HVAC industry. It is an excellent adhesive to bond Nitrile Rubber for insulating HVAC ducts, Chilled water pipe lines and under deck for various industrial & residential projects.
Appearence | Very light yellow Liquid | |
Viscosity at 30° ± | 10-15 poise | |
Temperature Resistance | -20° C to 85°C | |
Specific Gravity | 0.865 – 0.895 | |
VOC | < 320(+/- 2%) gms/ Liter | |
Coverage by Spreader | 7 m2 / Kg (Bonded area) | |
Shelf Life & Storage | 18 months from the date of manufacturing & when stored in a dry and cool place in the original unopened container ( Recommended Storage temperature: 20-30°C) | |
Packing | 30 Kg Plastic Drum | |
Uses: |
|

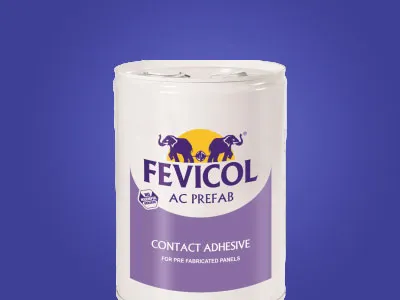

Quick and High Grab Adhesive specially developed for Angular Bonding. Fevicol Prefeb is a fast drying Synthetic Rubber based adhesive specially designed for pre formed panel of PUF/ PIR or Phenolic Foam etc. It develop quick garb hence it is preferred for fast fabrication. It is easily applicable at atmospheric temp with the help of spreader / Brush. Prefeb is an ideal adhesive for quick fabrication onsite construction of HVAC ducts.
Appearence | Light Brown medium viscous liquid | |
Viscosity at 30° ± | 17-22 Poise | |
Temperature Resistance | -20° C to 85°C | |
Specific Gravity | 0.80 – 0.84 | |
Coverage by Spreader | 4.5 m2 / Kg (Bonded area) | |
Shelf Life & Storage | 18 months from the date of manufacturing & when stored in a dry and cool place in the original unopened container ( Recommended Storage temperature: 20-30°C) | |
Packing | 30 Kg Plastic Drum | |
Application |
|

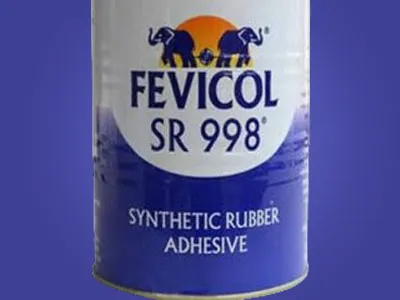

FEVICOL SR 998 is a Superior Adhesive recommended to bond Nitrile Rubber or XLPE to Galvanized Iron, Aluminum duct surface, Mild Steel for insulating HVAC Ducts, Chilled Water Pipe Lines and under deck in various industrial & residential projects. FEVICOL SR 998 is a Synthetic Rubber adhesive specially developed taking into consideration the application needs & performance requirements of HVAC & R Industry.
Appearence | Dark Brown Liquid |
Viscosity at 30° ± | 20-25 poise |
1 ° (Temp. Resistance) | -20° to 96° |
Specific Gravity@30° ± 1 °C | 0.84 to 0.88 |
Coverage by Spreader | 5.0 m2 / 1 Liter Coat |
Self Life & Storage | 12 months from the date of manufacturing & when stored in a dry and cool place in the original unopened container ( Recommended Storage temperature: 20-30°C) |
Packing | 25 Liter Drum & 1, 2, 5 Liter metal container |
Uses |
|

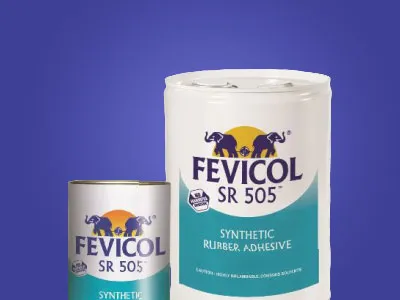

Multipurpose Mild smell Synthetic Rubber Adhesive. Fevicol SR 505 is a Synthetic Rubber based adhesive. Widely used in many application HVAC DUCTS, Chilled water pipe line, under deck insulation, industrial and residential projects. Easy to apply and having mild odor.
Appearence | Light yellow liquid |
Viscosity at 30° ± | 12 -16 Poise |
Temperature Resistance | -20° C to 80°C |
Specific Gravity | 0.82 – 0.86 |
Coverage by Spreader | 6-6.5 m2 / Kg (Bonded area) |
(Under identical lab test conditions at ambient, on smooth nonporous substrate with single side application) | |
Shelf Life & Storage | 18 months from the date of manufacturing & when stored in a dry and cool place in the original unopened container ( Recommended Storage temperature: 20-30°C) |
Packing | 25 Kg Plastic Drum. |
Fevicol Coating and Selants are used to seal joints also it is weather proof and used for weather protection. These are water repellant and UV resistive.
FEVICOL AC DUCT KING LAG COATING AF 5590 is an anti fungal, UV resistant, Vapor barrier coating water based, environment friendly, specially developed for wrapping and sealing of canvas / fabric or glass cloth on AC ducts {Insulated with EPS (Thermocol), Glass Wool, Rock Wool, PUFF) FEVICOL AC Duct King Lag coating AF 5590 is non flammable Green product with low VOC, Extremely suitable for green certified projects.
Appearence | Milky White Thixotropic Opaque Paste |
Viscosity at 30° ± | 500-95 poise |
Wet Flammability | No Flash to boiling (D 3278) |
Temp. Resistance | -180C to 800C |
Specific Gravity @ 30 0±10C | 1.19 to 1.27 |
% VOC | Max. 40 (less Water ) |
Coverage | 1.5 – 2 M2 /Liter/Coat/(With Recommended Quality of Glass) |
SHELF Life & Storege | 18 Month from the date of manufacture& when stored as per our recommendations. In original sealed condition. |
Packing | 30 Liter Plastic Drum |
Uses : |
|
Fevicol Weather Protekt Coat is water based fire retardant, flexible, vapour barrier, high solid coat which imparts tough mechanical protection and durable seal against water, moisture & weathering. 1 ) Weather Protekt is ideal for protecting all types of Insulation material used in Hot and Cold Insulation used in any type of Industrial / HVAC applications. 2) Weather Protekt is specially developed to enhance the insulation life since it protects the insulation from weathering for longer period of time and imparts special properties like erosion protection, water vapour barrier, and protection from fungal and algal attack. 3)Weather Protekt can be used in exposed exterior and high humidity environments.
Appearence | Milky White Thixotropic Opaque Paste |
Viscous t 300 ± 10C | 500-900 poise |
Wet Flammability(D 3278) | No Flash to boiling |
Temp. Resistance | -180C to 1000C |
Specific Gravity @300 ± 10C | 1.1 to 1.3 |
% VOC | <40 gms / ltr |
Coverage by Brush | 1.5 – 2 M2 /Ltr/ coat (with recommended quality of glass cloth |
Packing | 25 Kg and 5 Kg Plastic Bucket |
Uses : |
|

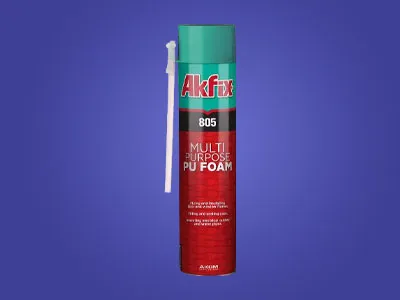

PU Foam is Single component self expanding foam used primarily to seal, fill, fix,and adhere to the gaps between HVAC duct / Chilled water VRV pipes and doors/ Windows/ Walls. Foam is water proof , CFC free & environment protective.
Density | 15-30 Kg/M3 |
Tack free time | 9-13 min |
Cutting time | 60 min |
Closed cell | 60-70% |
Temperature Resistance | -40 Deg C to 90 Deg C |
Yield per 750 ml | 45 liter |
Shelf Life & Storage | Shelf life is 9 months when stored at 20 Deg C from date of manufacturing in factory sealed canister |
Packing | 750 ml |
Uses : |
|
Aluminum Foil Tapes are generally used for seal the joints of ducting.
Microns | 30, 50 |
Available Size | |
Width | 2″ ,3″ |
Length | 36 , 20 Mtr |
Uses : |
|

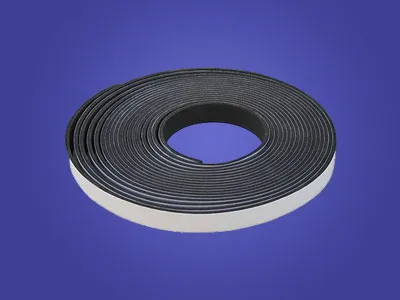

Duct gasket tape is pe coated fabric tape.
Specification | 25 mm X 3 mm X 10 Mtr |
Uses : |
|
Black Plastic self adhesive tape.
Width | 2″, 3″ |
Length | 25 Mtr |
Uses : |
|

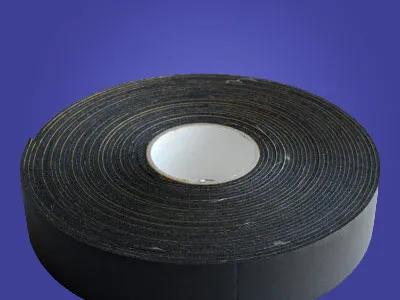

It is a flexible self adhesive insulation foam tape , which is made from class “O” Nitrile rubber elastomeric closed cell insulation.
Composition | Closed cell , class “O” nitrile rubber elastomeic thermal insulation. |
Colour | Black |
Density | 0.06 – 0-10 G/CM3 |
Thermal Condictivity | 0.04 w/mk at 24 Deg C |
Temperature Range | -29 Deg C to 93 Deg C |
Dimensions | |
Thickness | 3 mm |
width | 50 mm |
length | 9.1 MT |

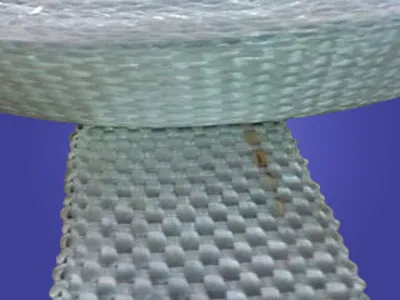

It s a self adhecive tape madeup of fiber glass fabric . Available in woven and non woven foam.
Mill | 5,7,10 mill |
Width | 1″,2″,3″ |
Uses : |
|
Bituminous products are either semi solid form of petrolium occur naturally or it will be refined. Betumenous product are generally used for road construction, but various form of bitumenous products are used in waterproofing, roofing felt or as a sealing compound.
Bitumen is black , sticky and viscous liquid or semi solid foam of petrolium. It occur naturally or refined product obtain during distilation of crude, petroleum oil without any subseqent amalgamation.
Industrial Grade | 80/90 | 110/120 | 85/40 | 85/25 | 90/15 | 115/15 | 135/10 | 155/6 |
Specific Gravity at 25 Deg C | 1.03-1.08 | 1.04-1.09 | 1.00-1.05 | 1.00-1.05 | 1.00-1.06 | 1.00-1.06 | 1.02-1.07 | 1.02-1.07 |
Flash Point ( Deg C)C | 200 | 200 | 225 | 225 | 228 | 225 | 225 | 228 |
Softening Point (Deg C) | 80-90 | 110-120 | 80-90 | 80-90 | 85-100 | 110-120 | 130-140 | 150-160 |
Penetrating at 25 Deg C ,100 g, 5 sec, in 1/100 cm | 12/6/2020 | 7/3/2020 | 35-45 | 20-30 | 10/1/1930 | 8/1/2020 | 12/7/2020 | 10/2/2020 |
Ductility at 27 Deg C | – | – | 3 | 3 | 2 | 2 | 1 | 0 |
Loss on Heating by weight | 0.1 | 0.1 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Percent by weight soluble in carbon disulphidet | 99 | 99 | 99 | 99 | 99 | 99 | 99 | 99 |

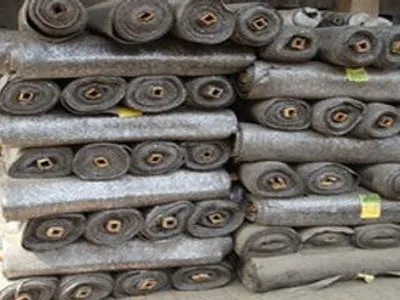

Tarfelt is bitumen compositional membrane incorporate with base fabric under special conditiones and temperature. Two types of base material is used . Hessain Cloth and Fiber. On the basis of base material the Grade and type of Felt is define. The base material is throughly and uniformly satureted with Bitumen. Saturated felt shall be treated by passing through bituminous contant mineral. The coatant should be uniformly applied.
Base | Type | Grade | Description |
Hessain Base | Type -3 | Grade -1 | Self finished felt ( for water Proofing) |
Hessain Base | Type -3 | Grade -2 | Self finished felt ( for damp Proofing) |
Fiber Base | Type -1 | Saturated felt for underlay | |
Fiber Base | Type -2 | Self finished felt ( for water proofing) |
Bitumenous Emulsion is a mixture of water and Bitumen. But as we know Bitumen is oil based product and do not soluble in water, that’s why emulsifier added to water before adding bitumen so Bitumenous emulsion is combination of three things water, emusifier and bitumen. Water Based emulsion processed from suitable grade of bitumen. The application of this product forms a tough surface with in 6-24 hours (depending upon climatic conditions) and renders adequate protection against moisture and accidental damage. Because of palsticity It can resist cracking caused by movements or temperature changes. It is an ideal and economic method of providing long term protection to exposed insulation besides preventing of steam losses.
CHARACTERISTICS: |
|

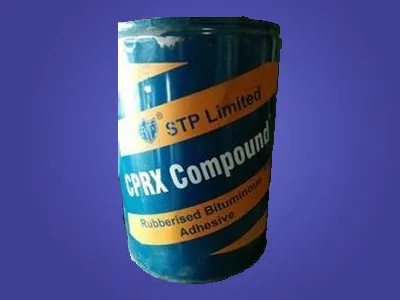

Is a rubberized bituminous adhesive in the form of an emulsion of brushable consistency. CHARACTERISTICS
Colour | Brown |
Consistency | Brushable |
Drying time | 24 hrs |
Coverage | |
On Metal Surface | 0.50 ltr per Sqm |
On concrete surface | 0.58 ltr. Per Sqm |
Dry film thickness | 120 |
Per coat in microns | |
Specific Gravity | 1.02 |
Packing | 20 Ltr |
