Insulation Ancillaries

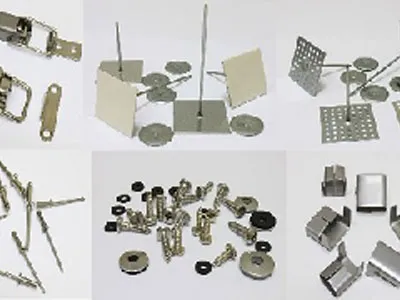

GI Wire /SS Wire is used for lacing Insulation Material over there surface of equipment or pipe line for the support. Generally 20 G GI wire is widely used for lacing.

GI Wire netting is used to cover loose Insulation material or Blanket/ Boards to provide mechanical strength to the structure. Insulation material is filled in Wire netting and than both the ends of wire netting is laced by GI Wire. Dimentions : 3/4″ X 24 G X1.22 Mt W X 45 Mt L 3/4″ X 24 G X 0.900 Mt W X 25 Mt L

GI Weld Mesh is generally used in Under Deck to support insulation weld mesh also provides mechanical strength to the structure. Size : 4 Ft X 100 Ft , 3″ X 3″ X 1.6 mm.

Sheet Metal Screws are used to support & secure cladding and to seal the joints. It is available in MS as well as SS MOC with and without neoprene washers. Size : 13 X8 & 19 X 8.

Aluminum / SS bands are applied over insulation and jacketing at a particular distance. It will tighten the insulation over the surface and provide strength in critical atmospheric conditions. Available in following sizes : 19 /12 mm X 24 SWG 19/ 12 mm X 22 SWG

Insulation pins are widely used to support insulation over verticle structure or for underdeck applications. Available in plain/ perforated and self adhesive type with washer.
