Polyolefin is general term used for compound of olefin as a monomer. Polyolefin foams are composed of several materials that have been mix together to form a compound structure. Basically these are organic blowing agent and crosslink agent mixed together to form polyolefin Resin.

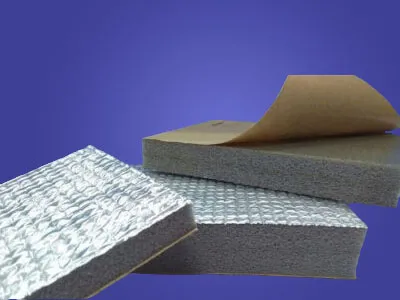

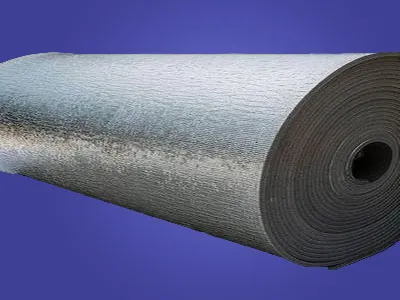

XLPE is Chemically cross link polyethylene, which is monomer of ethylene olefin. XLPE is Closed cell fire retardant polyethylene foam used for much insulation application. It is available in both Sheet and Tube form. It is also available with facing of Aluminum Foil, Fiber glass cloth or UV barrier
Densities (Kg/M3) | 30 +/- 3 |
Cell structure | Closed Cell |
Pipe Diameter | ¼” to 4” ( 6 mm to 100 mm) |
Thicknesses in (mm) | 6,9,13,19,25,32 (Tubes and Sheet) |
Dimensions | 1.25 Mt W (varies from 10 Mts to 30 Mts ) |
Temperature Range | -40 Deg C to 115 Deg C |
Thermal Conductivity | 0.032 / 0.034/ 0.038 W/mk |
USES: |
|

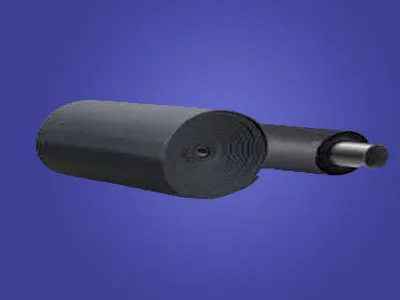

Oxide Acetate Foam is chemically cross link Oxide accetate foam. AccoIsolate is an open cell structure Acoustic Insulation utilize for large acoustic application.
Densities (Kg/M3) | 30 to 60 |
Cell structure | Open Cell, Cross linked, Stress Crack resistant |
Physical Appearance | One side Open Cell, Soft, Flexible and Glossy |
Thicknesses in (mm) | 10,15,25,35 |
Temperature Range | -70 Deg C to 100 Deg C |
Thermal Conductivity | 0.029 W/ mk at 0 Deg C |
USES: |
|
It is cross linked closed cell Oxide acetate foam used for thermal Insulation in AC ducting, Chilled water pipe, under deck/ over deck in RCC Roofing and metallic roofing This is UV resistive product also has Class “o” fire properties as per BS 476 part 6 material is also offered with factory laminated glass cloth and pure aluminum foil to give higher mechanical strength to the product.
Densities (Kg/M3) | 30 +/- 3 |
Cell structure | Closed Cell, Cross linked, Stress Crack resistant |
Physical Appearance | Soft, Flexible and Glossy |
Thicknesses in (mm) | 6,9,13,19,25,32 (Tubes and Sheet ) |
Temperature Range | -70 Deg C to 100 Deg C |
Thermal Conductivity | 0.029 W/ mk at 0 Deg C |
USES: |
|
Elestomeric Rubber are Polymer with viscoelasticity. Elastomeric Nitrile Rubber ( NBR) is copolymer of acrylo-nitrile and butadiene. Nitrile Rubber is oil Resistant synthetic rubber. Its Physical and Chemical Property vary with different composition of Nitrile Polymer’s. NBR is made in Hydrogenated version that is highly resistant to thermal and oxidative deterioration and remains flexible at lower Temp.

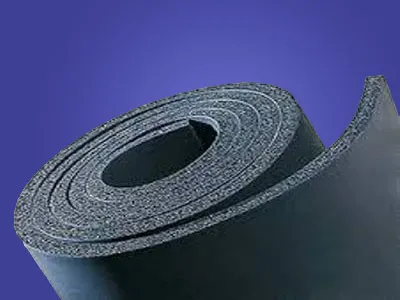

Elastomeric foam Insulation material manufactured from Nitrile Rubber in Preformed tubing and sheet. Nitrile Rubber insulation shows various properties due to its close cell and open cell structure. Closed cell Nitrile Rubber insulation has good thermal property while open cell structure provide good acoustic properties. It can be bifurcated in Class “O” and Class “1” on the basis of its fire resistance properties.
Densities (Kg/M3) | 40-60 |
Thermal Conductivity | 0.038 at ambient |
Thicknesses in (mm) | 6,9,13,19,25, 32 |
Pipes diameter from | (¼” )6 mm to (4 ¼”) 108 mm (tube length 2 Mt) |
Temperature Range | – 40 Deg C to +105 Deg C |
USES: |
|

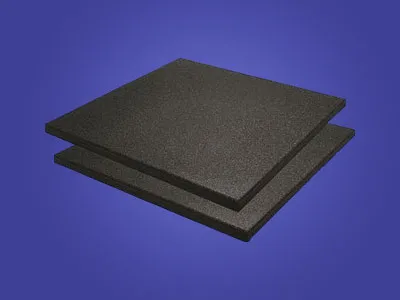

Accosound is blended elastomeric Nitrile rubber open cell structure acoustic insulation foam with complex pore geometry for effective absorption of sound across broad range of frequencies. Its high density provides effective barrier to sound transmission. (EPA Approved anti-microbial agent).
Densities (Kg/M3) | 200 (+ or – 10% ) |
Thicknesses in (mm) | 10, 12, 15 ,20,25,30 |
Temperature Range | – 40 Deg C to +105 Deg C |
USES: |
|

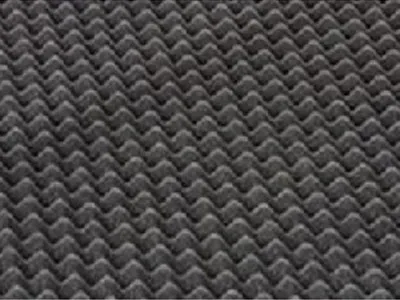

Accofoam is a thermo acoustic convoluted elastomeric Nitrile foam material provides superior sound absorption for low and mid frequency range. Its convoluted shape increase the absorptive surface area and it entraps and deflects sound waves efficiently. Accofoam is an excellent choice for fire safe, flexible, light weight , high performance noise absorption material is required.
Densities (Kg/M3) | 50 |
Thermal Conductivity | ≤ 0.036 W/mk @ 20 Deg C |
Thicknesses in (mm) | 9, 12, 15, 19 , 25 |
Fire Safety | Class “O” |
Advantages: |
|
Closed cell elastomeric foam insulation material manufactured from EPDM rubber in preformed tubing and sheet. It has low thermal conductivity and high water vapour diffusion resistance. It is free from HCFC and CFC. It is fiber free material and it ensures to save energy in eco friendly manner.
Densities (Kg/M3) | 50 to 70 |
Thicknesses in (mm) | 6,9,13,19,25, 32 |
Pipe Diameter | (¼” ) 6 mm to (4 ¼”) 108 mm (tube length 2 Mt) |
Temperature Range | – 50 Deg C to +125 Deg C |
Thermal Conductivity | Varies from 0.031 to 0.037 at different temp. |
USES: |
|

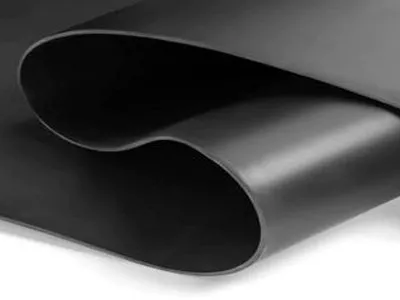

MTS is a kind of sound insulation rubber sheet with outstanding chemical, sound insulation property and vibration damping property.
Standard Size : | 2 mm X 1000 mm X 10 mm |
USES: |
|
Advantages: |
|
